 | Item Code: B00UYTTLI4 Condition: New Save 0% $10.73 Buy now |
Efficient Thermal Conductivity
The silicone based material of the Thermal Pads outperforms generic pads by far by providing an efficient thermal interface between heat sinks and electronic devices.
Filling the Gaps
Due to its great elasticity and compressing features, the thermal pad works as the perfect gap filler and bridges uneven surface topography, air gaps and rough surface textures without any problems.
Easy to Apply
Installing Thermal Pad is as easy as cut and apply. Perfect for beginners.
Safe Handling
The pad does not contain any metallic particles, is electrically isolating and not capacitive. The handling is safe as contact with any electrical pins would not result in damage of any sort.

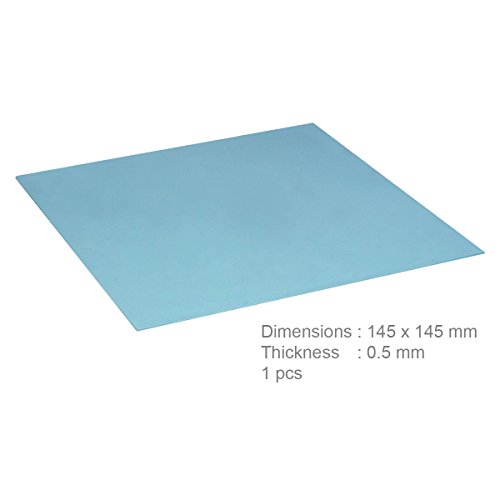

Dimensions: 50x50 mm or 145x145 mm(based on model)
Thickness: 0.5 mm or 1.0 mm or 1.5 mm (based on model)
Thermal Conductivity: 6.0 W/mK
Hardness: 25 Shore 00
Specific Gravity: 3.2 g/cm³
Colour: Blue
Continuous Use Temperature: -40 ~ 200 °C
Volume resistance: 1 X 1012 ?-cm
Breakdown Voltage: 12 KV/mm
Tensile strength: 2,5 Kgf/cm²
Elongation: 45 %
Dielectric constant: 14.1816 ? at 60 Hz / 13.0264 ? at 1K Hz / 13.0264 ? at 1M Hz
UL Flammability: V-0
Electrically non-conductive
Thermal Conductivity 6.0 W/mK
Safe and easy handling
High Performance Gap Filler
145 x 145 x 0.5 mm
