 | Item Code: B01KORS2Y4 Condition: New Save 0% $269.99 Buy now |

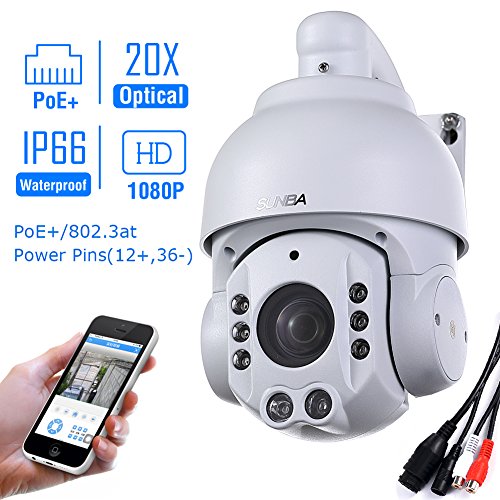

SUNBA ® -Dedicated PTZ Camera Professional
PoE+ (802.3at) injector/switch required! Conventional PoE will NOT be compatible.
Sunba 507-20XB is a Mini IP PTZ dome camera for monitoring home and commercial areas.
Remote access available through iOS, Android or PC (built-in P2P).
Audio In/Out No microphone included.
How to power microphone: Apply the complementary DC male to male converter to the camera's DC female port, and plug with microphone's DC female port.
Specifications
Focal Length: F1.6~F2.7
IRIS distance up to 100m
255 Presets, 4 lines auto cruise
20x Optical Zoom, 4.7~94.0mm
WDR, Day/Night(ICR), Auto Focus, AWB, AGC, BLC
Patrol: 4 patrols, up to 10 presets per patrol
Electronic Shutter 1/25 - 1/10,000s
Video compression H.264
Audio Compression: G.711, G.726, support 32k stereo
Stream Main-stream(1920 * 1080)(1280*960)(1280*720); Sub-stream(D1)
FPS: primary 1920*1080 30 fps secondary: 720*576 25 fps
Protocol: TCP/IP,HTTP,DDNS,DHCP,NTP,PPPoE,FTP,SMTP,RTSP,RTP
Power DC12V2A is included; PoE+ requires 48V and at least 30W for a single port
Weight(approx.) 3.1kg
Size: Ø150mm*243mm
Waterproof Aluminum Housing
Support Onvif 2.0 & Profile S Blue Iris Compatible.
For other software, please contact us to confirm.
Packing List
1 x Adapter
1 x Camera Wall Bracket
1 x Camera
1 x Manual
1 x Certificate
Warranty
Comes with a 2-yr USA manufacturer's warranty on parts.
PoE version of 507-20XB: PoE+ required: 802.3at (at least 30W for the single port) Power pins 1,3 (+) 3,6 (-) ; Professional 4-inch Aluminum Mini PTZ Speed Dome,Motion Detection, Audio Supported (G711a), TF Card Solution (Maximum support 64G)
2.0 Megapixel, Maximum Output:1920 x 1080P (30 fps) Full HD, Infrared Array Light and Optical Lens, IR-Cut Night Vision up to 100 m (~300 ft)
1/2.8"Sensor, SONY CMOS, Net interface RJ45 10M/100M, Available for remote viewing through iOS/Android (XMEye/VMEye) or PC
Middle Speed PTZ 0~25°/s (405-D20X and 601-D20X are high speed) ; Range: Pan:360 degrees continuously,Tilt: 0~90 degrees downward, 20X Optical Zoom ( reach 4.7mm~94.0mm focal length, 2.8~55.4 degrees viewing angle), Note: Camera zooms in along the center of the image, not along the top; it is most recommended the camera mounted at a high point. For upward tilt feature, please consider model 601/405-D20X.
2-yr US manufacturer's warranty, IP66 Outdoor Waterproof, Digital Noise Reduction, ONVIF Compliant, Blue Iris Compatible( H.264 34567)
